Golden Industries

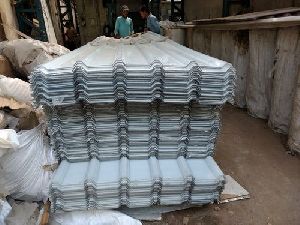

Polycarbonate Corrugated Sheet

Polycarbonate Corrugated Sheet
Business Type Manufacturer, Exporter, Supplier, Retailer
Width Up to 2100MM
Thickness 1mm to 12mm
Colors Clear, Grey, Opal, Milky White, Bronze, Blue, & Tailor made

Preferred Buyer From

Location India ( Bihar, Dadra & Nagar Haveli, Daman & Diu, Gujarat, Himachal Pradesh, Maharashtra, Rajasthan, Uttar Pradesh, West Bengal only) & All other countries

Polycarbonate corrugated sheets are available in matching profile to most of the contemporary corrugated roofing sheets. The dimension are generally governed by the customer requirement and hence we offer tailor-made solution in terms of choosing the right product and the dimensions in which it is required for a particular application. An island skylight configuration would require polycarbonate corrugated sheets in dimension identical to the corrugated roofing sheets. In strip-light & north-light configuration it may be varied as per recommendation of the Architect/Counsulting Engineer. Manufacturer, Supplier, retailer and wholesaler of domes, dust bins, fabric car porch, fiber glass shed, FRP door, fruit chairs, gazebo, khaprail sheds, polycarbonate shed, railing sheets, room weather proof, aluminum composite panels etc.

Read More...

Yes! I am interested


Specifications

Description Fortech® - UV 3000 Series

Fortech® - UV 5000 Series

UV Stabilized Yes Yes
UV Coating NA 40-50 µ
Both Side Plain Available Available
Embossed Available Available
Diamond Available Available
Colors Clear, Grey, Opal, Milky White, Bronze, Blue, & Tailor made Clear, Grey, Opal, Milky White, Bronze, Blue, & Tailor made
Thickness 1mm - 12mm 1mm - 12mm
Width Up to 2100mm Up to 2100mm

Technical Data Sheet

GENERAL
General Properties Method Units Value
Density ISO 1183 g/cm3 1.2
Light Transmission (Depending on thickness) ASTM D 1003 % 81-90
Reflective index ISO 489   1585
MECHANICAL
Tensile Strength at yield ISO 527-2 MPa 60
Tensile Modulus ISO 527-2 MPa 2300
Elongation at break ISO 527-2 % >100
Elongation at yield   % 6
Flexural Modulus ISO 178 MPa 2330
Charpy Un-notched ISO 179 KJ/m2 Not Break
Izod Impact notched ISO 180a KJ/m2 > 65
THERMAL
Temp of deflection (HTD) Under load of 1.8 MPa ISO 75-1 °C 130
Vicat softening temp (50 °C/h 50N) ISO 306 °C 144
Thermal conductivity DIN52612 W/m x°C 0.2
Coefficient of linear thermal expansion 0-50°C ISO 11359 mm/(mx1°C) 0.07
GWFI(Glow-wire Flammability index) IEC60695-2 °C 900
ELECTRICAL
Volume Resistivity IES 60093 ? x cm 3 x 1014
Surface Resistivity, dry IEC 60093 ? 6 x 1015
Dissipation Factor 1Mhz IEC60250   0.009
Dissipation Factor 100Hz IEC60250   0.0006
