Prime Turbo Air Ventilator

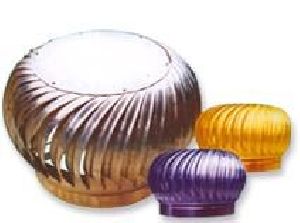

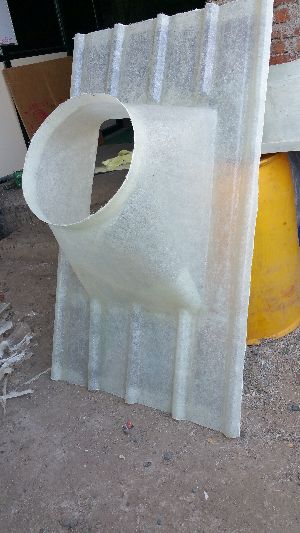

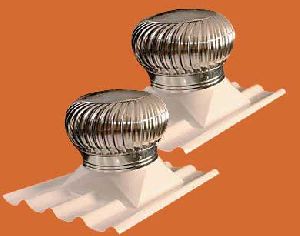

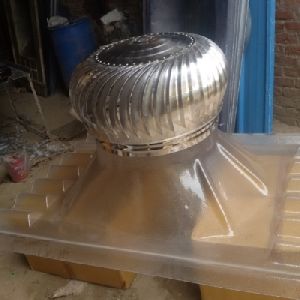

Prime Turbo Air Ventilator 01 Prime Turbo Air Ventilator 02 Air Ventilator Turbo Air Ventilator


We hold an expertise in manufacturing and supplying Prime Turbo Air Ventilators. Our Prime Turbo Air Ventilators are widely used for replacing hot air, humid air, stale air, smoke, dust & gas fumes, with fresh and ambient air. Thus, these Prime Turbo Air Ventilators help in improving working conditions. Designed using good quality raw materials, our Prime Turbo Air Ventilators are weather resistant and durable at the same time. As a result, the Prime Turbo Air Ventilators available are surely the best choice to vouch for.


Working Principal :
It utilizes wind energy to include air flow by centrifugal action. The entrifugal force generated by the rotating vanes creates low pressure zone, which draws fresh air from outside even after the stoppage of wind.

Why Our Prime Turbo Air Ventilator?
  • Designed as per industrial specifications & standards
  • Rigorously tested to ensure durability
  • Give efficient performance in extreme temperatures & high wind conditions
  • Its roof is manufactured under stringent quality check
  • Vanes are made of bright aluminum /SS material
  • Double curved vanes are specially designed for:
    • Maximum weather durability
    • Maximum wind driven efficiency
    • Rain spill deflection
  • Aerodynamic vanes are strong by structure & light in weight
  • Maximum energy utilization & performance of exhaust suction
  • Vanes prevents water entering the turbine by means of under groves
  • Groves are provided for water spill deflection
  • Does not require power or electricity
  • Can be fitted in any type of roof profile
  • 80% depreciation under section 32 of IT act
  • Teflon Pre sealed or SKF ZZ Bearing
  • Temperature decreases by 7-8 degrees by installing it

Requirement Of Air Ventilators :
  • No. of ventilators required : Ventilation rate Q/exhaust capacity
  • Required ventilation rate Q (cfm) : Volume x air change rate/60
  • Volume of spare to be ventilated (ft3) = 1 x w x h
  • Select exhaust capacity from Table B as per the required temperature diff 0 C and wind velocity (MPH)


Specifications


Wind Velocity (mph)5810
Temp Diff 0C351035103510
Model No.Stack (Height Ft)
Exhaust Capacity in CFM
HLT-18
HLT-28
HLT-32
1093910001102143614981600179218541958
20100510841216150315821714185919382070
30105811541314155616521812191520102168
40110712161398160517141896196120702252

Type of Building Air Changes Rate / Hr.
Ware House 4-6
Textile Mill / Auditorium 4-12
Factories ( Light) / Hall 6-12
Paper Mill / Brewery / Oil Mill / Packaging Room 8-30
Engine room / Laundry Plastic Factory 10-30
Heavy Factory / Transformer room -
Paint Shop / boiler Room 15-60
